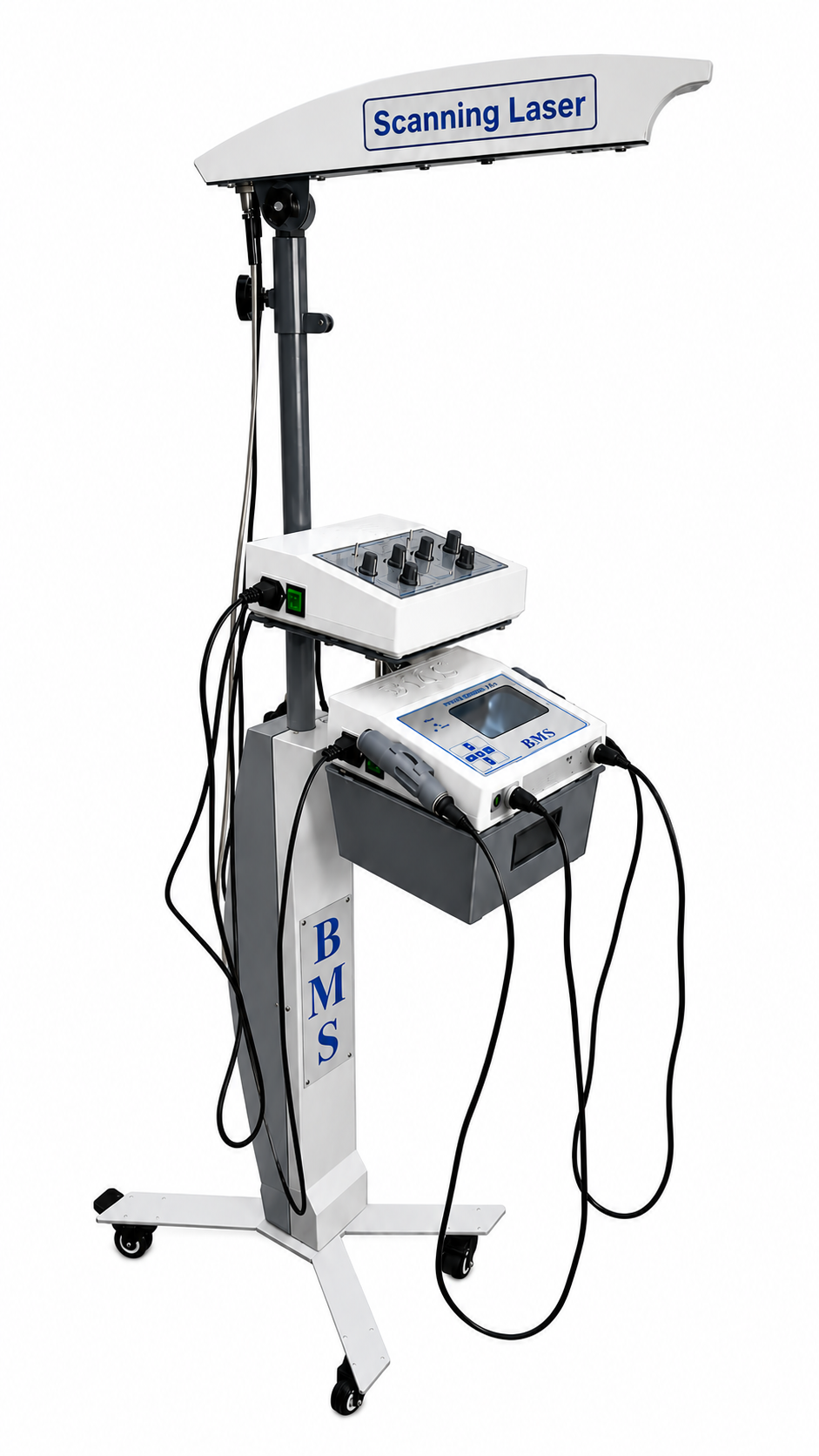

Scanning laser Portable LASER with Scanning LASER

Portable LASER with Scanning LASER

• This can be used as a Scanning Laser Therapy as well as Portable Laser Therapy.
• Arm can be tilt up 0 -60° and Down 0 -60° by Manually.Arm can be rotate 360°
• Scanning Laser Control Unit and Portable Laser Therapy Unit Height can be adjusted, storage box for accessories.
• computerized Control panel can set the various patterns of Laser beam shape and size  Independently.
• Laser Beam Pattern like circle, ellipse, Horizontal, Vertical, Spot and combination.
• Scanning area minimum 1 cm² to 360 cm², Scan the set area automatically and delivers the even dosage of energy to the treatment area, it provides faster healing.

Digi Laser Pro

• Red Probe 100mw/650 nm wavelength for superficial tissue penetration (power can be varied from 2mw to 100mw)
• IR Probe 100mw/950nm wavelength for deeper tissue penetration(power can be varied from 2mw to 100mw)
• RED Laser beam diameter is 0.357cm
• IR Laser beam diameter is 0.798cm
• Modulated frequency up to 10khz.(frequency can be varied from 200hz to 10khz)
• 100mw probes can be switched to 25mw,50,75,100mw by settings
• RED&IR Probes are pointed probes .Both probe tips covered by the plastic ceiling film to avoid infection when treating the open ‘wounds’
• Energy can be varied from 0.01J to 100J (Bio stimulation effect & Bio inhibition effect)
• Energy density can be varied from0.01J/cm² to 100J/cm²
• 100 pre programed pain condition wise (separately for IR& RED Laser)in alphabetic order.
• 100 user memory with patient name(Read & write)
• Pulsed mode 10%,20%,30%,40%,50%........100%
• Automatic calculation of power in mw, Energy in J and Energy density in J/cm²
• All parameters will be display in wide graphic LCD size 240x128(frequency , power, pulse ratio, Treatment time,treatment Area , Energy and Energy Density)
• Sensor for IR Laser (Invisible Laser )
• Laser principal, Formula and Contra indication will be displaying in the display.
• Class 3B Laser
• Laser type Semiconductor GaAs

Accessories:-

1. 3 Pin Output cable – 3 NoS.
2. 5 Pin Output Cable- 1No
3. Red probe– 1
4. IR Probe–1
5. Goggles–2
6. User Manual–1
7. Mains Cable–2
8. Warranty Card–1
9. Carrying Bag-2 Nos.
